IP66 High Speed Linear Actuator
Our PA-ST1 high-speed linear actuators offer high speed capabilities in a tubular form factor with IP66 water protection to ensure durability and longevity in various outdoor environments. The PA-ST1 high-speed linear actuator offers a stroke range from 1â to 24â off the shelf combined with 12VDC voltage compatibility. Off-the-shelf options are available with ratings that can handle a dynamic force of 56 lbs and a static force of 225 lbs while traveling 5.9"/sec unloaded.

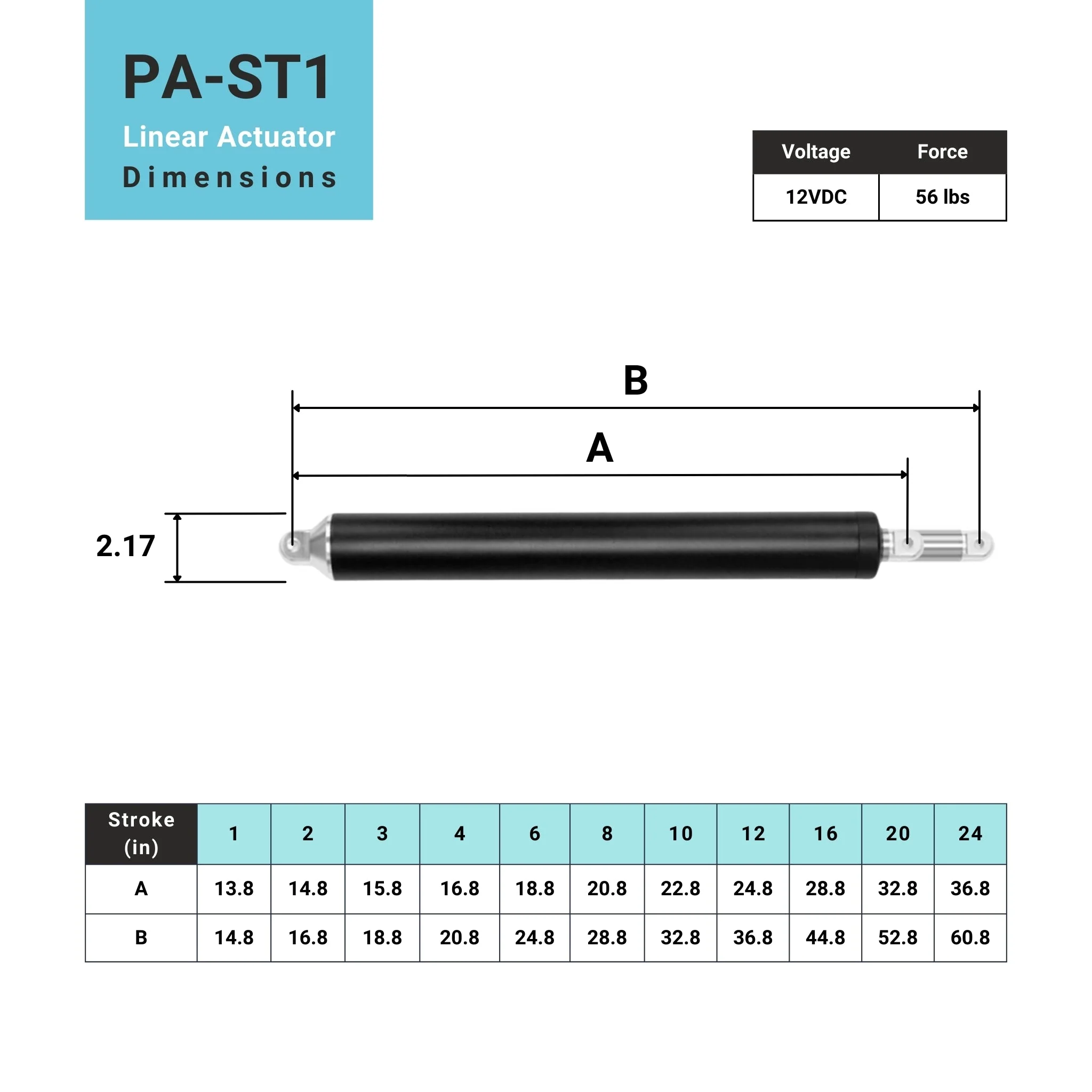

Simple plug-and-play operations combined with a 9.5A current draw allow for seamless implementation with existing systems across multiple applications and industries. There is a wide range of applications for these high-speed linear actuators such as outdoor use cases, DIY projects, agricultural industries, and home automation. For a full list of specifications, and dimensional drawings, please see our PA-ST1 high-speed linear actuator Data Sheet.
MOUNTING OPTIONS:
The BRK-09 bracket, designed for the Mini Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The 9.5A current draw fully loaded allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
Original: $263.99
-70%$263.99
$79.20More Images
IP66 High Speed Linear Actuator
Our PA-ST1 high-speed linear actuators offer high speed capabilities in a tubular form factor with IP66 water protection to ensure durability and longevity in various outdoor environments. The PA-ST1 high-speed linear actuator offers a stroke range from 1â to 24â off the shelf combined with 12VDC voltage compatibility. Off-the-shelf options are available with ratings that can handle a dynamic force of 56 lbs and a static force of 225 lbs while traveling 5.9"/sec unloaded.
Simple plug-and-play operations combined with a 9.5A current draw allow for seamless implementation with existing systems across multiple applications and industries. There is a wide range of applications for these high-speed linear actuators such as outdoor use cases, DIY projects, agricultural industries, and home automation. For a full list of specifications, and dimensional drawings, please see our PA-ST1 high-speed linear actuator Data Sheet.
MOUNTING OPTIONS:
The BRK-09 bracket, designed for the Mini Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The 9.5A current draw fully loaded allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Our PA-ST1 high-speed linear actuators offer high speed capabilities in a tubular form factor with IP66 water protection to ensure durability and longevity in various outdoor environments. The PA-ST1 high-speed linear actuator offers a stroke range from 1â to 24â off the shelf combined with 12VDC voltage compatibility. Off-the-shelf options are available with ratings that can handle a dynamic force of 56 lbs and a static force of 225 lbs while traveling 5.9"/sec unloaded.
Simple plug-and-play operations combined with a 9.5A current draw allow for seamless implementation with existing systems across multiple applications and industries. There is a wide range of applications for these high-speed linear actuators such as outdoor use cases, DIY projects, agricultural industries, and home automation. For a full list of specifications, and dimensional drawings, please see our PA-ST1 high-speed linear actuator Data Sheet.
MOUNTING OPTIONS:
The BRK-09 bracket, designed for the Mini Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The 9.5A current draw fully loaded allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
