120 VAC - 12/24 VDC Control Box - 4 Channel - Wired Remote
The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. Featuring an AC input voltage, an additional power supply is not needed to control your 12/24 VDC linear actuators. Mount the control box to your application by using the mounting holes on either side of the control box. Equipped with overcurrent protection that triggers when any channel exceeds 11A.Ā

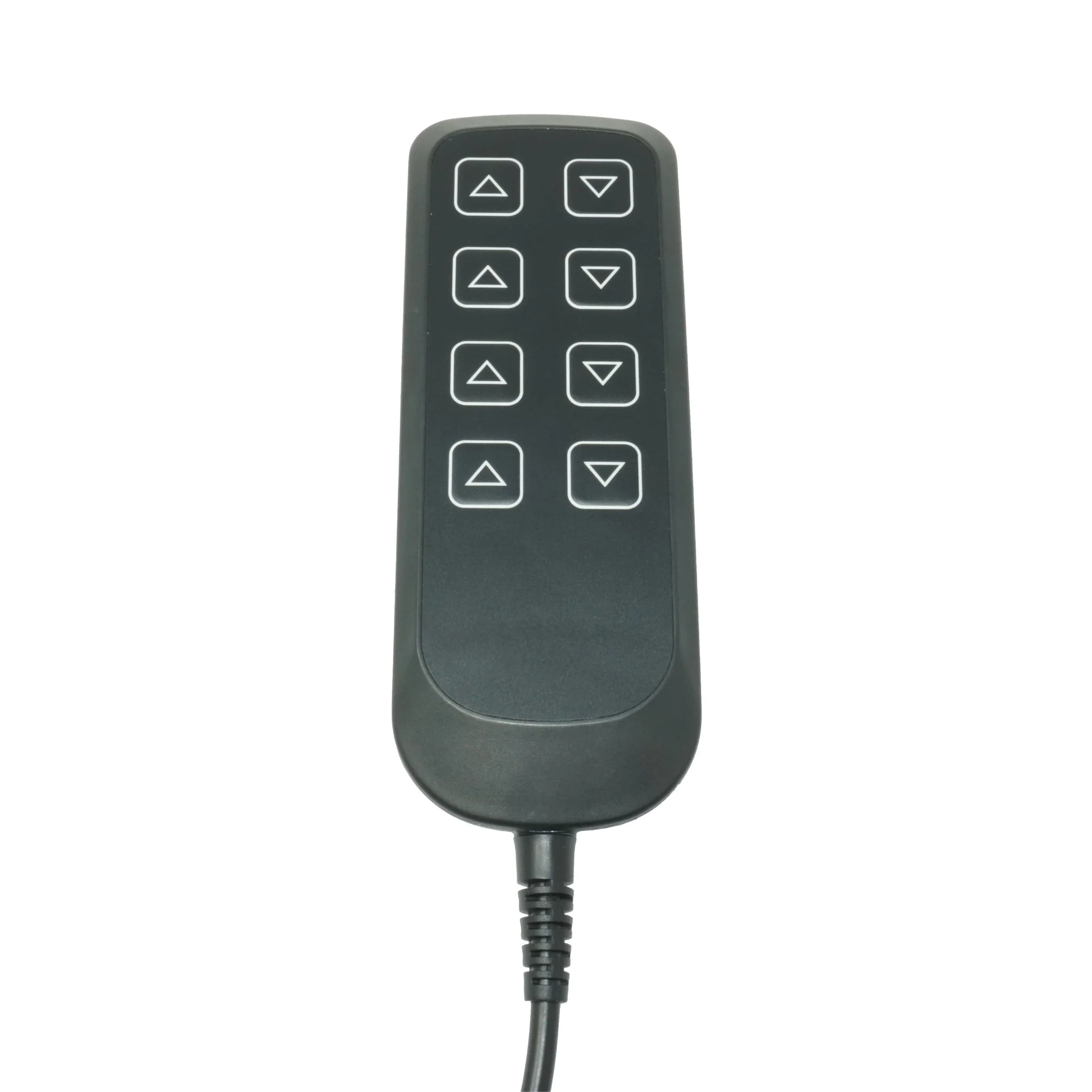

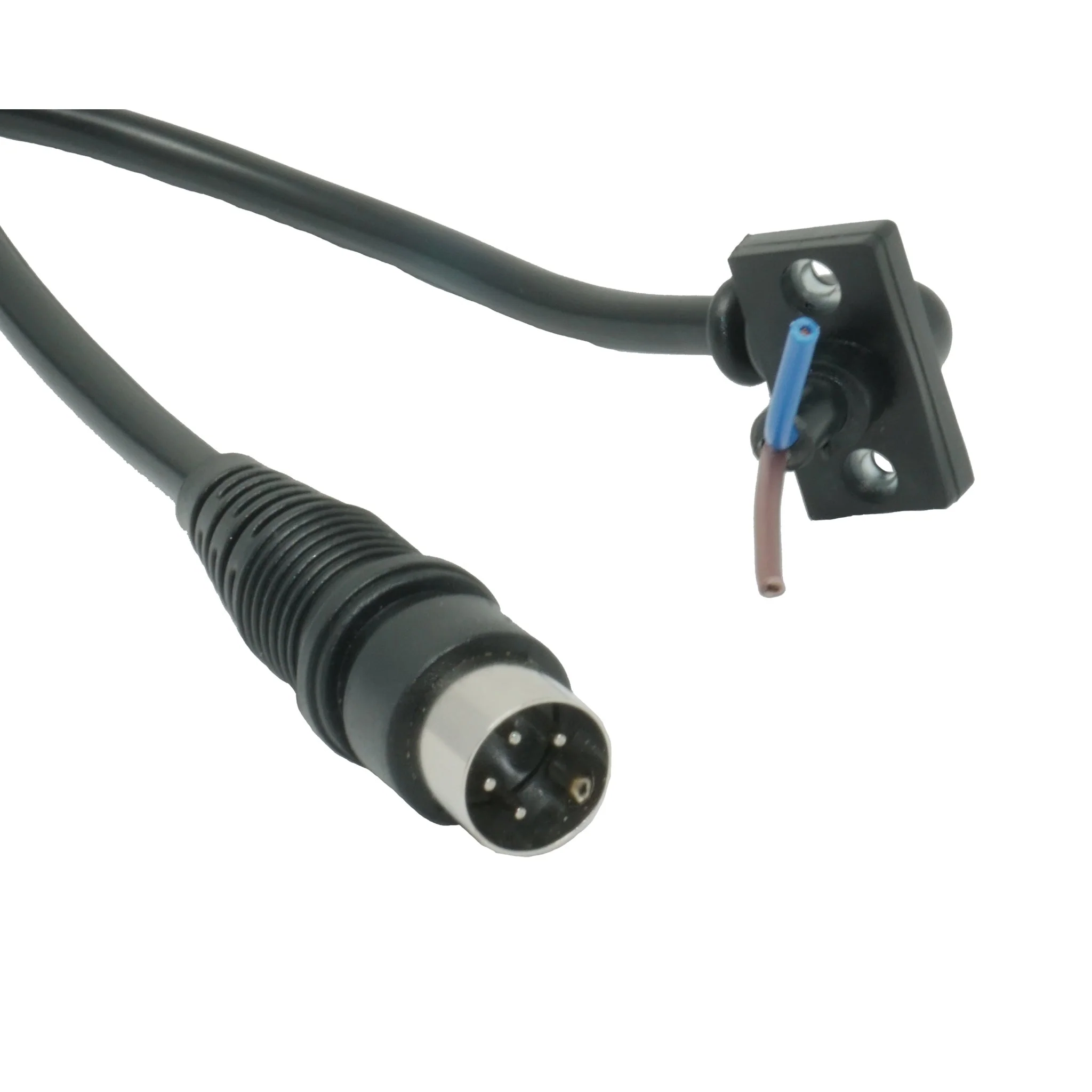

This control box set comes with a detachable wire lock to prevent wire disconnections, 4xĀ AC-06-2Ā actuator cables, an AC adapter, and a large hand remoteĀ complete with a coiled cable and a handle that helps provides a secure grip as well as keeping the cable well organized.
This control box allows for momentary up/down controls.
* Only compatible with 12 VDC (24VDC) brushed DC motors. Individually controls up to 4 Actuators. (1 Operational Per Use).
Original: $173.99
-70%$173.99
$52.20More Images
120 VAC - 12/24 VDC Control Box - 4 Channel - Wired Remote
The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. Featuring an AC input voltage, an additional power supply is not needed to control your 12/24 VDC linear actuators. Mount the control box to your application by using the mounting holes on either side of the control box. Equipped with overcurrent protection that triggers when any channel exceeds 11A.Ā
This control box set comes with a detachable wire lock to prevent wire disconnections, 4xĀ AC-06-2Ā actuator cables, an AC adapter, and a large hand remoteĀ complete with a coiled cable and a handle that helps provides a secure grip as well as keeping the cable well organized.
This control box allows for momentary up/down controls.
* Only compatible with 12 VDC (24VDC) brushed DC motors. Individually controls up to 4 Actuators. (1 Operational Per Use).
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. Featuring an AC input voltage, an additional power supply is not needed to control your 12/24 VDC linear actuators. Mount the control box to your application by using the mounting holes on either side of the control box. Equipped with overcurrent protection that triggers when any channel exceeds 11A.Ā
This control box set comes with a detachable wire lock to prevent wire disconnections, 4xĀ AC-06-2Ā actuator cables, an AC adapter, and a large hand remoteĀ complete with a coiled cable and a handle that helps provides a secure grip as well as keeping the cable well organized.
This control box allows for momentary up/down controls.
* Only compatible with 12 VDC (24VDC) brushed DC motors. Individually controls up to 4 Actuators. (1 Operational Per Use).
